Product details

Features

  • High quality DC to AC pure sine wave.
  • The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.
  • With bipolar SPWM drive, the output sinusoidal waveform is more accurate and the inductive load capacity is stronger.
  • Multiple protection functions: input low voltage shutdown protection, input high voltage shutdown protection, battery high and low voltage alarm, overload protection, output short circuit protection, overheating protection, input reverse protection.
  • Automatic reset function: After input high voltage or low voltage shutdown, when the input voltage returns to normal, the inverter will automatically restore the output voltage.
  • Soft start function, it is easier to run inductive and capacitive loads.
  • Buzzer reminder device, once the protection of the inverter is triggered, the buzzer sounds an alarm to remind people.
  • The aluminum casing is anodized, which not only has a beautiful appearance, but also has good heat dissipation performance, wear resistance, insulation, and durability.

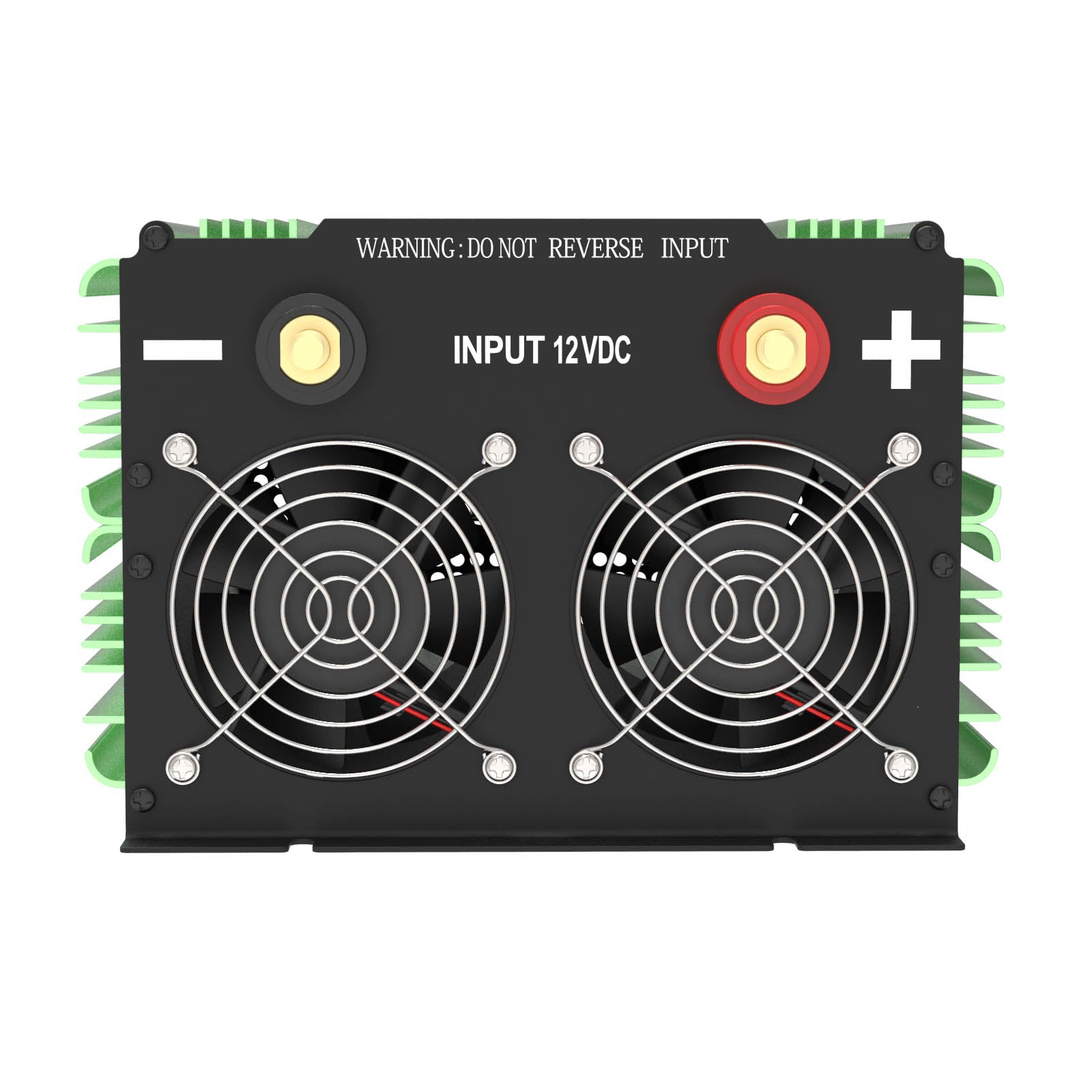

  • Dual intelligent temperature control fan to reduce unnecessary waste of battery power; When the internal temperature of the inverter is ≥45±5°C, the fan starts to work.

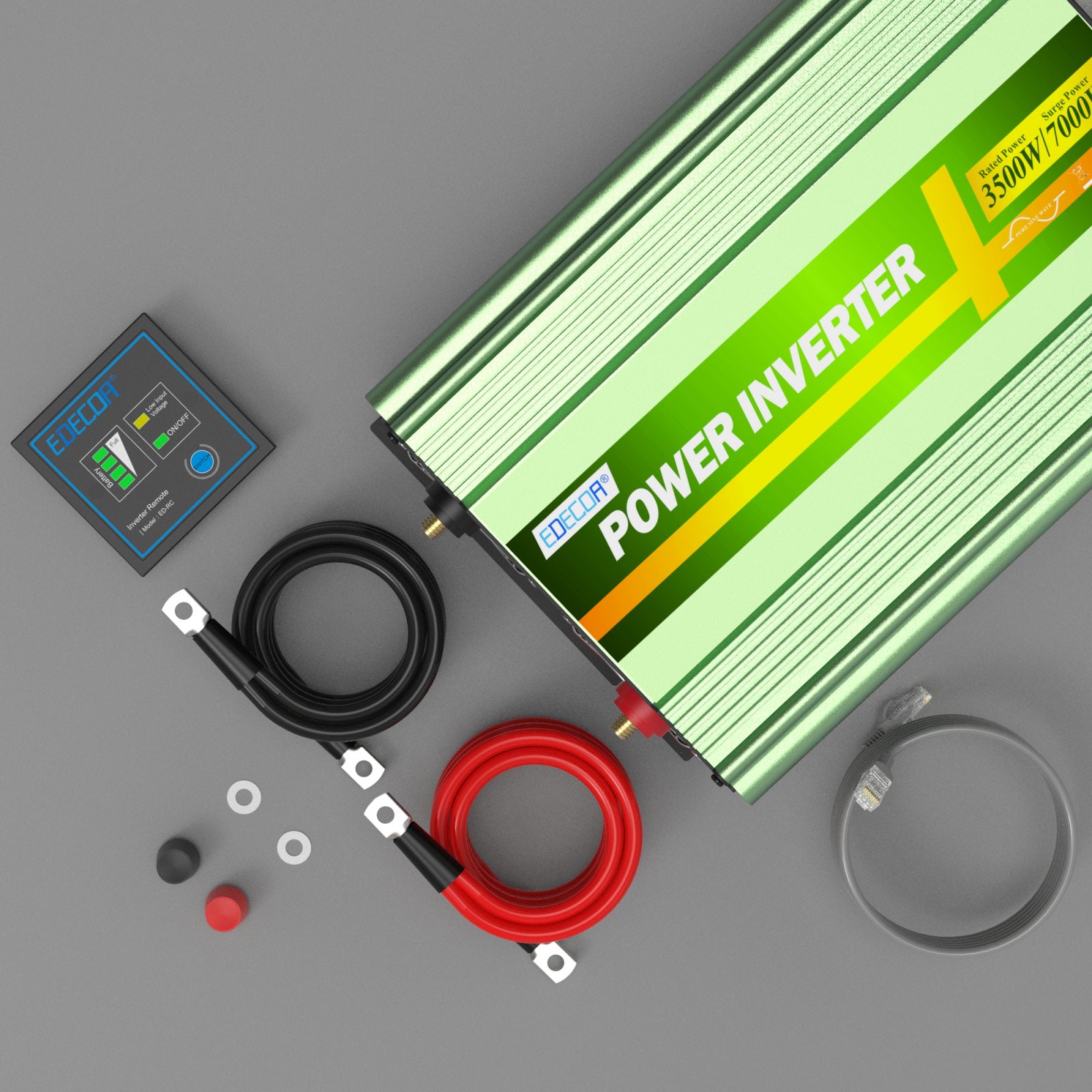

  • Remote control function, can display battery power, battery low-voltage alarm, the switch button can turn on/off the inverter, the remote control port is standard RJ45, you can replace longer cable to increase remote control distance.

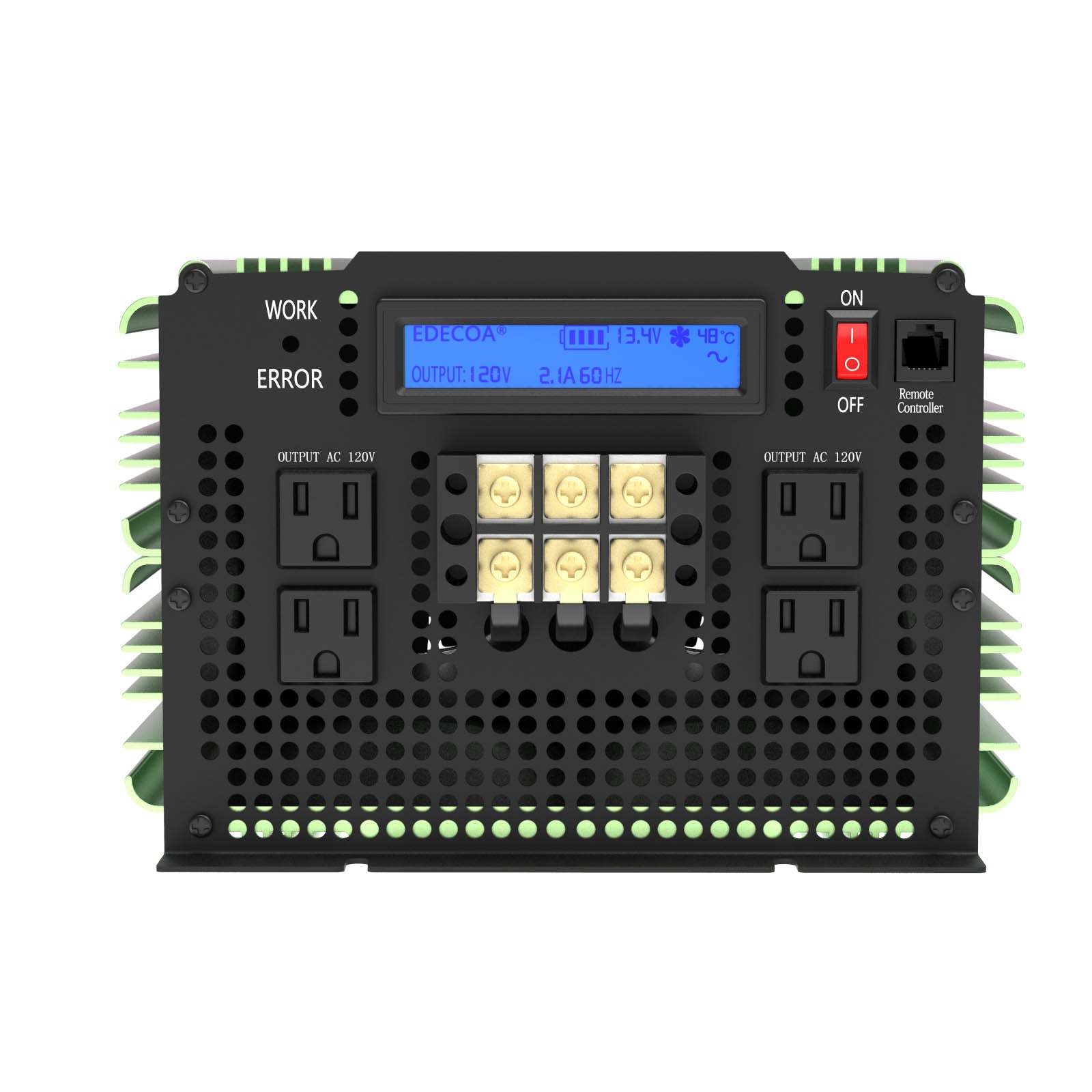

  • LCD display that shows input voltage, output voltage and current, output frequency, inverter temperature and alarm conditions.
  • Screw terminal. Pluggable plug for easy cable replacement.



Specification





Continuous Power 3500W
Surge Power 7000W
DC Input Voltage 12V 24V
AC Output Voltage 110V~120V
AC Output Frequency 60Hz
AC Output Waveform Pure Sine Wave
USB Output (If have) /
Waveform distortion THD<5% (Linear load)
Efficiency (>90% Load) >85% >85%
DC Input Voltage Range 10V~15V 20V~30V
Input Low voltage Shutdown Voltage 9.5V±0.3V 19V±0.5V
Input High voltage Shutdown Voltage 15V±0.3V 30V±0.5V
No Load Current < 0.5A < 0.7A
Surge Power Duration 0.1S
NetWeight 7.3 kg
Dimensions (L x W x H) 32x23x18 cm
Battery Cable (Cross-sectional area*length) (16mm²*600mm)*2 25mm²*600mm
