Powers You Up with Clean Energy

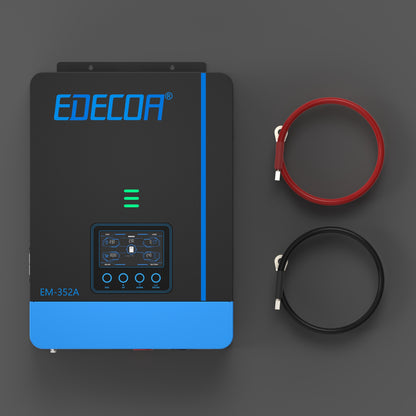

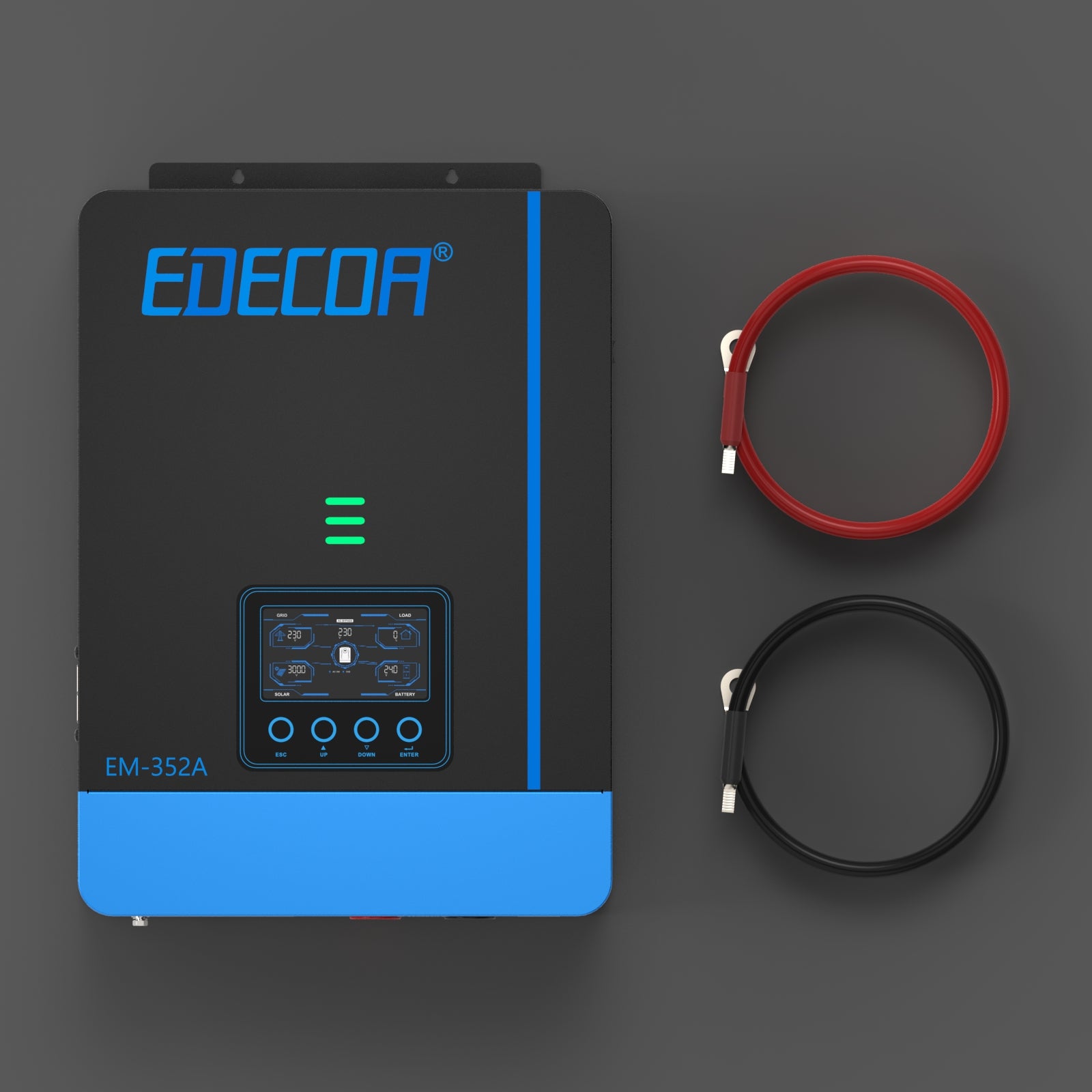

Get ready to power up your life with the hybrid power inverter from EDECOA.

Whether you're camping, tailgating, or experiencing a poweroutage,  this inverter has got you covered.

This inverter is not only strong, stable and programmable, but it also helps you protect the environment with clean energy.

All In One

This inverter is more than just a power source. It has a built-in MPPT Solar Controller and a AC Battery Charger, making it the perfect all-in-one solution for your off-grid power needs.

Load video:

Multi Working Modes

It can run on both solar energy and AC power. You have the flexibility to use whichever power source is most convenient and more economical, making it the ultimate power solution.

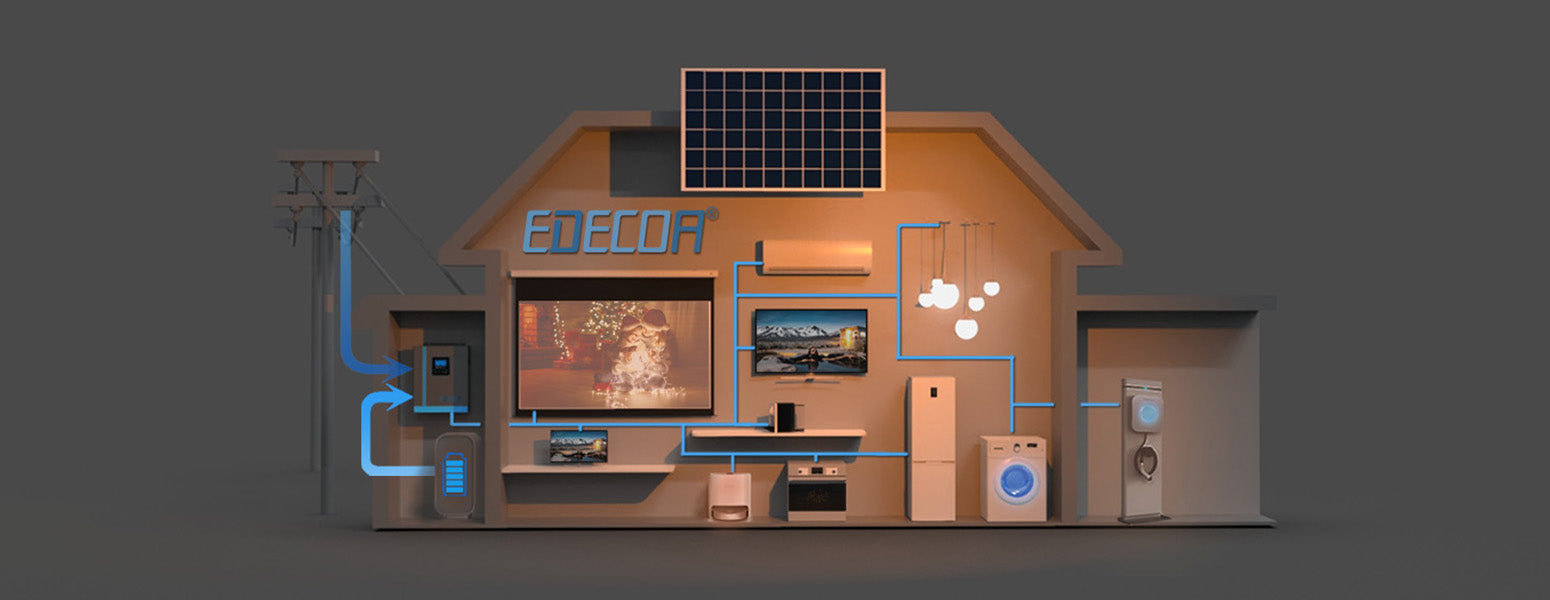

Day and Night Demo

Load video:

Smart Battery Charging

The 6 phases AC Battery Charger ensures that your batteries are always ready when you need them, while the inverter provides reliable power for all your needs.

WIFI Option

This hybrid inverter has an optional WIFI adapter. You can choose to buy a extra WIFI adapter together with APP.

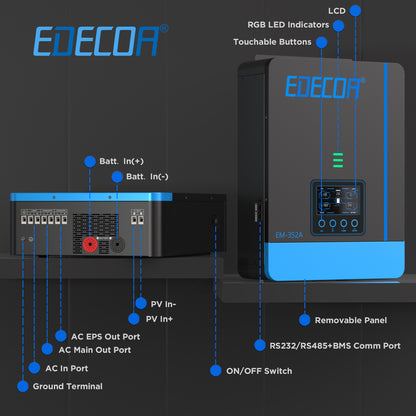

Product details

Features

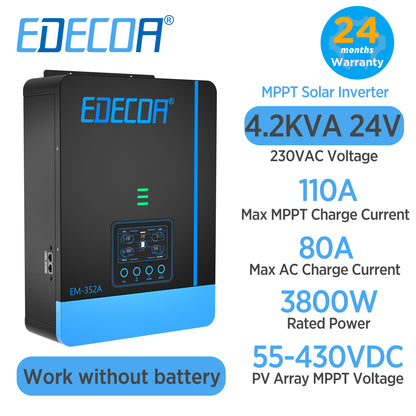

  • All in one inverter: DC 24V to AC 220V hybrid inverter, built-in MPPT solar charge controller, battery charger, compatible with a wide range of battery types, compatible with PV solar panel input, grid/generator input.

  • Pure sine wave: provides high quality and stable AC power, protects the load, extends the service life of the appliance and has a wide range of applications.

  • Wide range of uses: suitable for caravans, camping, boats, homes etc. and can be connected to a wide range of domestic and office loads.

  • Built-in MPPT solar charge controller: faster and more efficient charging.

  • Wide PV input range: high adaptability to voltage fluctuations for stable equipment operation.

  • Compatible with multiple battery types: AGM,GEL,LiFePo4,FLD. Customised settings for battery type, charging voltage and current.

  • Multiple charging modes: utility priority, solar priority, utility and solar, solar only.

  • Multiple output modes: utility priority, solar priority, battery priority.

  • UPS function: fast switching power supply solution to provide uninterrupted power supply if the utility/generator is disconnected or if solar charging is insufficient.

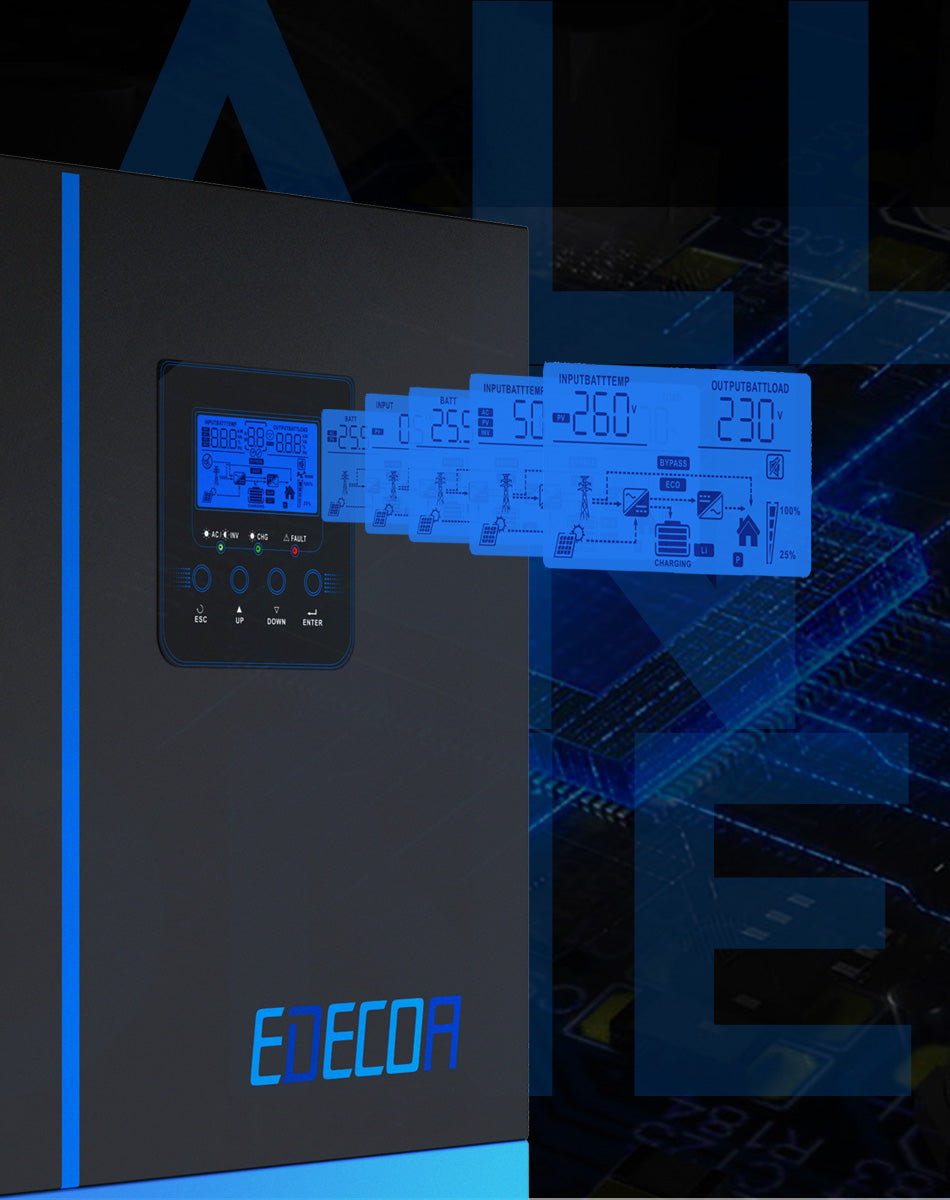

  • LCD display: dynamic display of system data and operating status, setting of inverter parameters at the touch of a button.

  • Multiple communication methods: RS232/RS485/BMS/WIFI. It can be monitored remotely at any time and from anywhere by mobile phone or computer, reacting to the operating status of the equipment in real time and setting the inverter parameters remotely. Contact us for the computer monitoring software and mobile phone APP download address.

  • Multiple protections: Over loaded protection, Short loaded protection, Over Temperature Protection, Output overvoltage protection, Input undervoltage protection, Input overvoltage protection.

  • Intelligent cooling function: intelligent variable speed fan, depending on the temperature of the equipment to open different cooling effect, effective heat dissipation, extend the life of the system.

  • Cold start function: protects the battery and extends its life.

  • Power saving mode(ECO): reduces standby power consumption by 70%, saving electricity and preventing the battery from running out of power.



Parameters

AC Input

Input Voltage Waveform: sinusoidal(Utility or generator)

Nominal Input Voltage: 230VAC

Max AC Input Voltage: 300VAC

Nominal Input Frequency: 50Hz/60Hz(Auto detection)

Efficiency(Line Mode): >95%(Rate R Load, battery full charged)

Low loss Voltage: 170VAC±7V(UPS); 90VAC±7V(Appliances)

High loss Voltage: 280VAC±7V

UPS Transfer Time: 10ms typical(UPS); 20ms typical(Appliances)

Output

Rated Output Power: 3800W (Main: 3800W, EPS:1200W)

Output Voltage Waveform: Pure sine wave

Output Voltage Regulation: 230VAC±5%

Output Frequency: 50Hz or 60Hz

Peak Efficiency: 95%

Overload Protection: 5s@150% load, 10s@110%-150% load

Surge Capacity: 2* rated power for 5 seconds

DC Input

Nominal DC Input Voltage: 24VDC

Cold Start Voltage: 23VDC

Low DC Warning Voltage: 20.2-22VDC

Low DC Warning Return Voltage: 21.2-23VDC

Low DC Cut-off Voltage: 19.2-21VDC

High DC Recovery Voltage: 29VDC

High DC Cut-off Voltage: 31VDC

No Load Power Consumption: <25W

Saving Mode Power Consumption(ECO): <10W

ECO mode to return to ON: ≥80W

Utility Charging Mode

Max AC Charging Current: 80A

Bulk charging Voltage:

Flooded battery: 29.2VDC

AGM/Gel battery: 28.2VDC

Float Charging Voltage: 27VDC

Lithium battery BMS communication: Yes

Solar Charging Mode

Rated Power: 6000W

Max Charging Current: 110A

PV Array MPPT Voltage Range: 55-430VDC

Max PV Open Circuit Voltage: 450VDC

Max Charging Current(AC+Solar): 110A

Efficiency: 98% max

General Specification

Operation Temperature: 0°C-55°C

Storage Temperature: -15°-C~60°C

Humidity: 5%-95% Relative Humidity(Non-condensing)

Dimensions (DxHxW): 423*300*120mm

Net weight: 7.6Kg

Gross weight: 10.4Kg

Protect Function:

Over loaded protection;

Short loaded protection;

Over Temperature Protection;

Output overvoltage protection;

Input undervoltage protection;

Input overvoltage protection;

Battery Cable(Cross-sectional area*length): 25mm²*0.7M

FAQs

Please read our FAQs page to find out more.

Can I feed the device directly into the network/main supply?

This inverter does not feed power into the home grid. It is a stand-alone off-grid inverter.

Why does the hybrid inverter not recognize my solar modules?

The working PV range of this hybrid inverter is 55-450Vdc. If the connected solar modules don't reach a total of 55Vdc, the hybrid inverter will not recognize your solar system/PV array. We recommend you to connect at least 3 pieces of 24V solar panel in paralle.

Can I also operate the inverter without a battery?

This inverter must work with a battery.

How do I calculate the minimum number of panels to be connected?

The working voltage for 12V solar panels is 15 to 19V and for 24V it is 30 to 38V.

In a series connection, 4 solar panels with 12V (15*4=60V) and 2 solar panels with 24V (30*2=60V) are required.

We recommend connecting one more solar panel for safety.

Can a lithium battery be connected?

Yes, this hybrid inverter is compatible with Li-ion battery. Some models includes the function of BMS communication between your LiFePo4 batteries and the inverter.
